JZP-B Series
In today's era of vigorous development of industry and
construction, the operation of various machinery and equipment, the
bearing of building structures and the operation of transportation
facilities inevitably produce vibration and noise. The Assembled
Vibration Isolator (JZP) is like a silent guardian, quietly playing
a key role behind the scenes, creating a more stable, quiet and
comfortable environment.
Prefabricated Vibration Isolators (JZPs) are by no means simple
construction, and are often carefully constructed with high-quality
springs as the core support components. Designed and manufactured
according to precise mechanical principles, these springs have just
the right coefficient of elasticity to accurately cushion and
absorb impact forces from different directions, effectively
suppressing the propagation of vibrations. At the same time, the
shock absorber pad is also an indispensable part of it. The damping
pads are made of special rubber or polymer materials, which have
excellent damping properties, which can not only further reduce the
vibration amplitude, but also effectively block the transmission of
noise, as if putting a "shackle" on vibration and noise.
From industrial production to daily life, from urban construction
to transportation, the prefabricated vibration isolator (JZP)
silently "absorbs shock and noise" for our world with its excellent
vibration isolation and noise reduction performance. It is a
shining pearl in modern engineering technology, constantly pushing
various industries to move towards more efficient, stable,
comfortable and safe direction, so that we can enjoy the
convenience brought by scientific and technological progress, but
also free from vibration and noise, and embrace a quiet and
harmonious living and working environment.
Dimensional parameter table
| Model | D | H | h | A | B | d1 | MG | R |
| JZP | 58 | 29 | 17 | 50 | 60 | 5.5 | M6 | 5 |
| JZP-B | 46 | 30 | 18 | 40 | 50 | 5.5 | M6 | 5 |
| JZP-C | 36 | 20 | 13.5 | 32 | 40 | 4.3 | M5 | 4 |
Technical data sheet
| Model | Nominal load (kg) | Static displacement (mm) | Operating temperature (℃) | Resonant frequency (Hz) | Damping ratio | Impact test | expiration date | Expiration date |

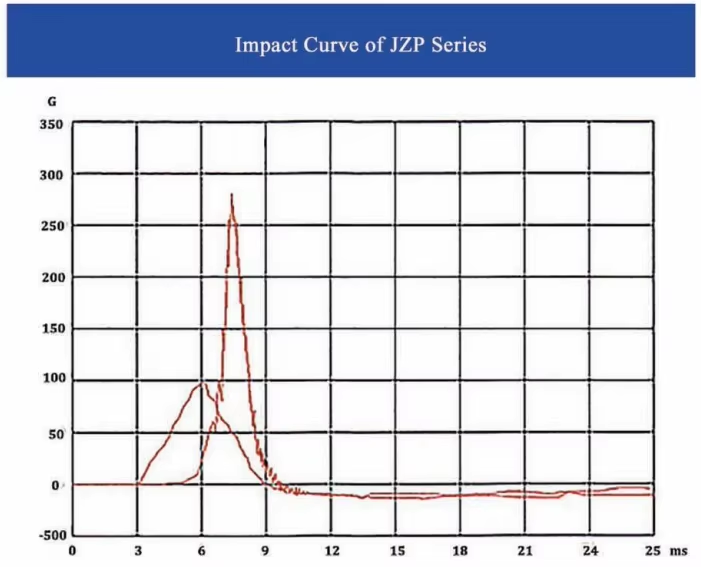

| JZP-1.0B | 1.0 | ≤0.3 | -45～+65 | 41.5±5 | ≥0.13 | 100g12次 | 8 | 5 |
| JZP-1.5B | 1.5 |
| JZP-2.0B | 2.0 |
| JZP-3.0B | 3.0 |
| JZP-4.0B | 4.0 |
| JZP-4.5B | 4.5 |
| JZP-5.0B | 5.0 |
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
