GR4 Series
In industrial production, vibration often comes from the operation
of equipment, such as motor operation, machining, etc. If left
unchecked, these vibrations can affect the accuracy of the
equipment, reduce productivity, and may even lead to safety
incidents. The GR4 series isolators effectively reduce these
adverse effects by absorbing and isolating vibrations. For example,
in precision machining, the GR4 series isolators can be installed
in key parts of the machine tool, such as between the headstock and
the table, to reduce the vibration generated during machining,
thereby improving machining accuracy and product quality.
In addition to machining, the GR4 series isolators are also used in
a wide range of other industrial applications. In the aerospace
industry, the stability of equipment is extremely high due to the
complex vibration environment experienced by aircraft during
take-off, flight and landing. GR4 series isolators can be used in
key components such as avionics systems, navigation systems, etc.,
to ensure the reliability of these systems under extreme
conditions. In the communications industry, the stable operation of
base stations is essential for signal transmission. GR4 series
isolators can be installed in the antenna, feeder and other parts
of the base station to reduce the vibration caused by wind,
earthquake and other factors, and ensure the stable transmission of
signals.
The GR4 series of compact wire rope isolators play an important
role in the industrial field due to their excellent performance and
wide applicability. From precision machining to aerospace, from
communication base stations to chemical production, to automotive
manufacturing, the GR4 series isolators can find their application
stage. It not only improves the stability of the equipment,
prolongs the service life of the equipment, but also guarantees the
continuity and safety of production to a large extent. With the
continuous advancement of industrial technology, it is believed
that the GR4 series isolators will play an even more important role
in future industrial applications.
| No. | Nodel | Max Static Load (N) | Max Deflection (mm) | Kv(Vibration) (KNm) | Ks(shock) (KNm) |
| 1 | GR4-24D-A | 24 | 19.6 | 12 | 5.8 |
| 2 | GR4-18D-A | 18 | 29.7 | 6 | 2.5 |
| 3 | GR4-13D-A | 13 | 35.8 | 4.4 | 1.6 |
| 4 | GR4-6.7D-A | 6.7 | 49.3 | 2.2 | 0.7 |
| No. | Nodel | Max Static Load (N) | Max Deflection (mm) | Kv(Vibration) (KNm) | Ks(shock) (KNm) |
| 1 | GR4-24D-A | 11 | 19.3 | 6.4 | 2.8 |
| 2 | GR4-18D-A | 6.7 | 29.5 | 3.1 | 1.1 |
| 3 | GR4-13D-A | 5.3 | 37.1 | 2.2 | 0.7 |
| 4 | GR4-6.7D-A | 3.6 | 52.3 | 1.1 | 0.4 |

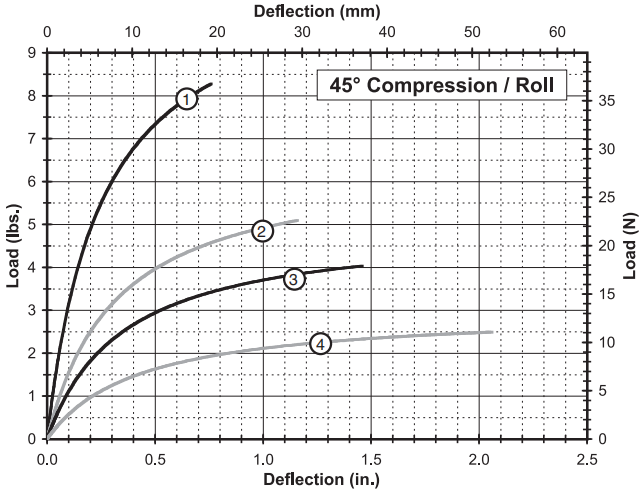

| No. | Nodel | Max Static Load (N) | Max Deflection (mm) | Kv(Vibration) (KNm) | Ks(shock) (KNm) |
| 1 | GR4-24D-A | 8.5 | 17.3 | 1.9 | 1.9 |
| 2 | GR4-18D-A | 7.1 | 26.4 | 1.1 | 1.1 |
| 3 | GR4-13D-A | 5.3 | 33.3 | 0.7 | 0.7 |
| 4 | GR4-6.7D-A | 3.3 | 47 | 0.4 | 0.4 |
