    GR2-4.9D-A The Top-Notch Wire Rope Vibration Isolator for Helicopter Drones with Cameras GR2 Series

    Ask Lasest Price
    Brand Name : Hoan
    Model Number : GR2-4.9D-A
    Certification : ISO9001:2015
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 4,pience,7
    Delivery Time : 7
    • Product Details
    • Company Profile

    GR2-4.9D-A The Top-Notch Wire Rope Vibration Isolator for Helicopter Drones with Cameras GR2 Series

    GR2 Series

    By building your own Camera Gimbal & using for your Helicopter Drone Cameras, the GR Series cinema vibration isolators is your best choice!

    The GR2-4.9D-A cinema vibration isolator is one type camera vibration isolators from the GR2 family, which is designed especially for single use or building camera gimbals to absorb tensional force against the vehicles movement with the camera.

    The maximum static load of GR2-4.9D-A is 4.9N, which is specially used for helicopter drone with cameras.

    The GR2-4.9D-A cinema vibration isolators can smooth out the small rhythmic vibrations of a traveling shot as well as dampening those sudden, unexpected jolts that a stone or a pothole can produce. With stainless steel material, the GR2-4.9D-A model has perfect performance of water-proof, anticorrosion as well as durability.

    Nowadays, the GR2 series isolators are used widely in the field of photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras, etc.

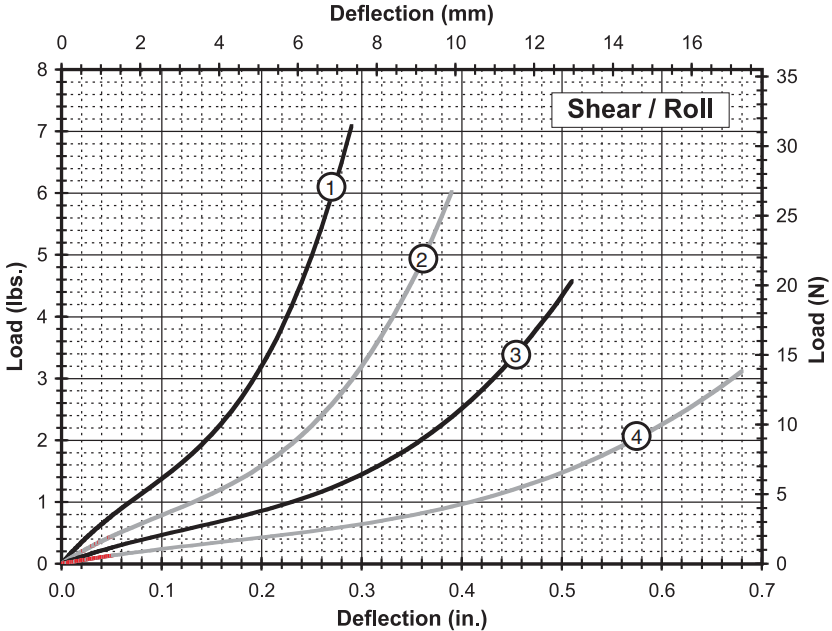

    No.Model

    Max Static Load

    (N)

    Max Deflection

    (mm)

    Kv(Vibration)

    (KNm)

    Ks(shock)

    (KNm)

    1GR2-12D-A125.8116.1
    2GR2-9.3D-A9.38.48.84.0
    3GR2-6.7D-A6.711.75.31.9
    4GR2-4.9D-A4.915.73.51.2

    No.Model

    Max Static Load

    (N)

    Max Deflection

    (mm)

    Kv(Vibration)

    (KNm)

    Ks(shock)

    (KNm)

    1GR2-12D-A5.88.16.12.8
    2GR2-9.3D-A4.910.95.31.9
    3GR2-6.7D-A3.314.53.21.0
    4GR2-4.9D-A2.219.11.90.5


    No.Model

    Max Static Load

    (N)

    Max Deflection

    (mm)

    Kv(Vibration)

    (KNm)

    Ks(shock)

    (KNm)

    1GR2-12D-A5.67.43.03.0
    2GR2-9.3D-A4.09.91.81.8
    3GR2-6.7D-A2.913.01.11.1
    4GR2-4.9D-A2.017.30.50.5

    * Unique Characteristics of Xi'an Hoan's Vibration Isolators *

    * No creep or ageing.
    * High internal damping.
    * Very wide temperature range.
    * Wide variety of possible fittings.
    * Rapid and economical prototyping.
    * Extremely rugged construction and long lifespan.
    * Excellent combined shock and vibration isolation.
    * Not affected by chemical agents, seawater, ozone, UV rays
