Vibration Shock Control JGX-0956 Compact Wire Rope Isolator

Ask Lasest Price
Model Number :	JGX-0956
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Add to Cart

Product Details
Company Profile

Vibration Shock Control JGX-0956 Compact Wire Rope Isolator

summary:
Wire rope isolator (JGX) is a common isolation device, usually composed of multiple stranded wire ropes and fixed support components at both ends. Its main function is to reduce or eliminate the vibration and impact force transmitted to buildings or mechanical equipment through the flexibility and elasticity of the steel wire rope, thereby protecting the equipment and improving the stability of the working environment.

Mounting Options

SIZE PARAMETER:

Model

“H”±3.30

“W”

Unit weight

Mounting options

Thru hole(mm)

Thread(mm)

JGX-0956D-110A	71	84	1.245	A,B,C,D,E,S	∅9.0+0.13 -0.38	M6×1.0	90
JGX-0956D-104A	74	89	1.275
JGX-0956D-80A	76	105	1.350
JGX-0956D-75A	83	108	1.425
JGX-0956D-72A	89	108	1.470
JGX-0956D-40A	105	121	1.605
JGX-0956D-32A	108	140	1.680

Technical Data Sheet:

Vertical load

Curve number

Model

Maximum static load(N)

Maximum deformation(mm)

Vibration stiffness

KN/m)

Impact stiffness(KN/m)

1	JGX-0956D-110A	110	34.0	275	135
2	JGX-0956D-104A	104	37.1	240	114
3	JGX-0956D-80A	80	40.1	180	84
4	JGX-0956D-75A	75	44.7	154	68
5	JGX-0956D-72A	72	49.8	137	60
6	JGX-0956D-40A	40	66.0	65	25
7	JGX-0956D-32A	32	68.1	51	19

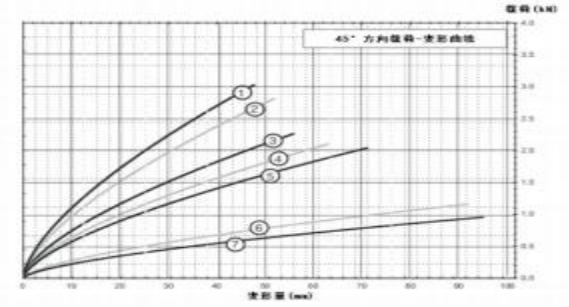

45 ° directional load:

Curve number

Model

Maximum static load(N)

Maximum deformation(mm)

Vibration stiffness(KN/m)

Impact stiffness(KN/m)

1	JGX-0956D-110A	90.8	47.8	177	77
2	JGX-0956D-104A	84.0	51.8	156	67
3	JGX-0956D-80A	68.1	55.9	120	49
4	JGX-0956D-75A	63.6	63.0	103	40
5	JGX-0956D-72A	61.3	71.1	92	35
6	JGX-0956D-40A	34.8	91.9	44	16
7	JGX-0956D-32A	28.6	95.0	36	12

Lateral load:

Curve number

Model

Maximum static load(N)

Vibration stiffness(KN/m)

Impact stiffness(KN/m

1	JGX-0956D-110A	70.3	36.1	98	98
2	JGX-0956D-104A	65.8	39.1	84	84
3	JGX-0956D-80A	49.9	42.2	58	58
4	JGX-0956D-75A	47.7	47.2	49	49
5	JGX-0956D-72A	45.4	52.8	44	44
6	JGX-0956D-40A	20.4	68.1	20	20
7	JGX-0956D-32A	15.9	71.1	15	15

characteristic:
1. Efficient vibration isolation performance: Steel wire rope isolators can effectively absorb and reduce vibration transmission, effectively isolating vibration sources.
2. Strong durability: The steel wire rope isolator is made of durable steel wire rope, which has a long service life and can operate stably in harsh environments.
3. Adjustable: Steel wire rope isolators can usually be adjusted according to actual needs to meet the isolation requirements of different occasions.
4. Easy installation: Installing wire rope isolators is relatively simple and can be customized according to specific installation scenarios and requirements.
Application:
1. Building structure
2. Industrial equipment
3. Bridges
4. Pipeline
