Customizable Vibration Shock Control JGX-0480 Compact Wire Rope Isolator

Ask Lasest Price
Model Number :	JGX-0480
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Add to Cart

Product Details
Company Profile

Customizable Vibration Shock Control JGX-0480 Compact Wire Rope Isolator

summary:
Wire rope isolator (JGX) is a common isolation device, usually composed of multiple stranded wire ropes and fixed support components at both ends. Its main function is to reduce or eliminate the vibration and impact force transmitted to buildings or mechanical equipment through the flexibility and elasticity of the steel wire rope, thereby protecting the equipment and improving the stability of the working environment.

Mounting Options

SIZE PARAMETER:

Model	“H”±3.30	“W”	Unit weight	Mounting options	Thru hole(mm)	Thread(mm)	C'sink(°)
JGX-0480D-75A	30	36	0.304	D	∅6.9±0.13	M6×1.0	90
JGX-0480D-72A	33	38	0.32	D
JGX-0480D-61A	36	41	0.336	B,D,E
JGX-0480D-59A	38	43	0.336	A,B,C,D,E,S
JGX-0480D-52A	41	46	0.352
JGX-0480D-50A	43	48	0.4
JGX-0480D-37A	51	58	0.416
JGX-0480D-24A	54	75	0.432
JGX-0480D-18A	62	88	0.448
JGX-0480D-12A	81	107	0.464

Technical Data Sheet:

Vertical load

Curve number	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness KN/m)	Impact stiffness(KN/m)
1	JGX-0480D-75A	75	8.6	578	363
2	JGX-0480D-72A	72	11.7	455	252
3	JGX-0480D-61A	61	13.7	347	189
4	JGX-0480D-59A	59	15.7	301	152
5	JGX-0480D-52A	52	18.8	244	117
6	JGX-0480D-50A	50	20.8	212	96
7	JGX-0480D-37A	37	26.9	136	58
8	JGX-0480D-24A	24	29.5	82	33
9	JGX-0480D-18A	18	36.6	54	21
10	JGX-0480D-12A	12	52.8	29	10

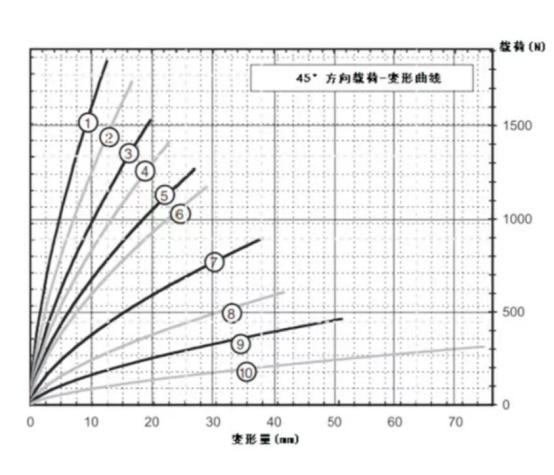

45 ° directional load:
