Custom JGX-0240 Compact Wire Rope Isolator for Vibration Shock Control Needs

Ask Lasest Price
Model Number :	JGX-0240
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Add to Cart

Product Details
Company Profile

Custom JGX-0240 Compact Wire Rope Isolator for Vibration Shock Control Needs

summary:

Wire rope isolator (JGX) is a common isolation device, usually composed of multiple stranded wire ropes and fixed support components at both ends. Its main function is to reduce or eliminate the vibration and impact force transmitted to buildings or mechanical equipment through the flexibility and elasticity of the steel wire rope, thereby protecting the equipment and improving the stability of the working environment.

Mounting Options

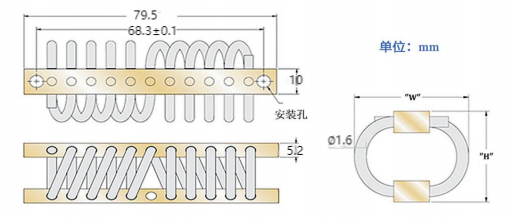

SIZE PARAMETER:

Model	“H”±1.5	“W”	Unit weight	Mounting options	Thru hole(mm)	Thread(mm)	C'sink(°)
JGX-0240D-8.6A	23	28	0.102	B,D,E	∅5.6±0.13	M5×0.8	90
JGX-0240D-7.7A	25	30	0.119	A,B,C,D,E,S
JGX-0240D-6.3A	28	33	0.119
JGX-0240D-4.5A	33	38	0.119
JGX-0240D-4A	36	41	0.119
JGX-0240D-3.6A	38	43	0.152

Vertical load

Curve number	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness KN/m)	Impact stiffness(KN/m)
1	JGX-0240D-8.6A	8.6	8.6	65	40
2	JGX-0240D-7.7A	7.7	10.7	51	30
3	JGX-0240D-6.3A	6.3	13.7	37	19
4	JGX-0240D-4.5A	4.5	17.8	23	11
5	JGX-0240D-4A	4.0	20.8	18	7.9
6	JGX-0240D-3.6A	3.6	22.9	16	7.0

45 ° directional load:

Curve number	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness(KN/m)	Impact stiffness(KN/m)
1	JGX-0240D-8.6A	6.3	12.7	38	20
2	JGX-0240D-7.7A	5.4	15.7	28	14
3	JGX-0240D-6.3A	4.5	18.8	21	9.6
4	JGX-0240D-4.5A	3.7	25.9	13	5.6
5	JGX-0240D-4A	3.2	27.9	11	4.4
6	JGX-0240D-3.6A	2.8	32.0	9.6	3.5

Lateral load:

Curve number	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness(KN/m)	Vibration stiffness(KN/m)
1	JGX-0240D-8.6A	4.5	9.7	24	24
2	JGX-0240D-7.7A	4.1	11.7	18	18
3	JGX-0240D-6.3A	3.2	13.7	12	12
4	JGX-0240D-4.5A	2.8	18.8	7.0	7.0
5	JGX-0240D-4A	2.2	21.8	5.3	5.3
6	JGX-0240D-3.6A	1.8	23.9	4.4	4.4

characteristic:
1. Efficient vibration isolation performance: Steel wire rope isolators can effectively absorb and reduce vibration transmission, effectively isolating vibration sources.
2. Strong durability: The steel wire rope isolator is made of durable steel wire rope, which has a long service life and can operate stably in harsh environments.
3. Adjustable: Steel wire rope isolators can usually be adjusted according to actual needs to meet the isolation requirements of different occasions.
4. Easy installation: Installing wire rope isolators is relatively simple and can be customized according to specific installation scenarios and requirements.
Application:
1. Building structure
2. Industrial equipment
3. Bridges
4. Pipeline
