JGX-0320 Compact Wire Rope Isolator Vibration Shock Control Solution

summary:
Wire rope isolator (JGX) is a common isolation device, usually composed of multiple stranded wire ropes and fixed support components at both ends. Its main function is to reduce or eliminate the vibration and impact force transmitted to buildings or mechanical equipment through the flexibility and elasticity of the steel wire rope, thereby protecting the equipment and improving the stability of the working environment.

Mounting Options

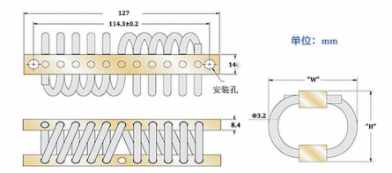

SIZE PARAMETER:

Model	“H”±1.5	“W”	Unit weight	Mounting options	Thru hole(mm)	Thread(mm)	C'sink(°)(°)
JGX-0320D-22A	28	36	0.228	B,D,E	∅6.9±0.13	M6×1.0	90
JGX-0320D-20A	20	38	0.228	A,B,C,D,E,S
JGX-0320D-17A	33	41	0.247
JGX-0320D-16A	36	43	0.247
JGX-0320D-14.5A	38	46	0.247
JGX-0320D-13.5A	41	48	0.285
JGX-0320D-12A	43	51	0.285

Vertical load

Curve number	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness KN/m)	Impact stiffness(KN/m)
1	JGX-0320D-22A	22	9.7	154	91
2	JGX-0320D-20A	20	11.7	124	68
3	JGX-0320D-17A	17	13.7	95	51
4	JGX-0320D-16A	16	16.8	78	39
5	JGX-0320D-14.5A	14.5	18.8	67	32
6	JGX-0320D-13.5A	13.5	21.8	57	25
7	JGX-0320D-12A	12	23.9	46	21

45 ° directional load:

Curve number	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness(KN/m)	Impact stiffness(KN/m)
1	JGX-0320D-22A	15.2	13.7	86	46
2	JGX-0320D-20A	14.1	17.3	70	35
3	JGX-0320D-17A	12.0	19.8	53	25
4	JGX-0320D-16A	11.3	23.9	44	20
5	JGX-0320D-14.5A	10.4	26.9	39	16
6	JGX-0320D-13.5A	9.6	31	32	12
7	JGX-0320D-12A	8.6	34	26	11

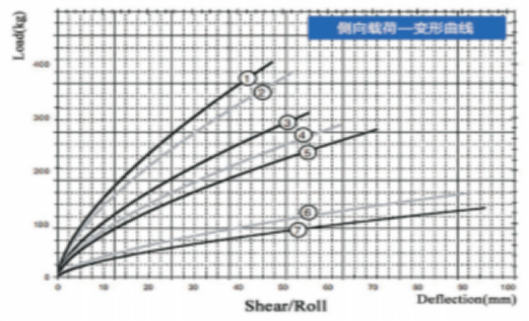

Lateral load:

Curve number	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness(KN/m)	Vibration stiffness(KN/m)
1	JGX-0320D-22A	11.3	9.7	56	56
2	JGX-0320D-20A	10.0	11.7	43	43
3	JGX-0320D-17A	9.5	14.7	31	31
4	JGX-0320D-16A	8.7	17.8	25	25
5	JGX-0320D-14.5A	8.2	19.8	19	19
6	JGX-0320D-13.5A	7.2	22.9	16	16
7	JGX-0320D-12A	6.3	25.9	12	12

characteristic:
1. Efficient vibration isolation performance: Steel wire rope isolators can effectively absorb and reduce vibration transmission, effectively isolating vibration sources.
2. Strong durability: The steel wire rope isolator is made of durable steel wire rope, which has a long service life and can operate stably in harsh environments.
3. Adjustable: Steel wire rope isolators can usually be adjusted according to actual needs to meet the isolation requirements of different occasions.
4. Easy installation: Installing wire rope isolators is relatively simple and can be customized according to specific installation scenarios and requirements.
Application:
1. Building structure
2. Industrial equipment
3. Bridges
4. Pipeline
