    GR2-6.7A-A Screw-in Shock Absorber for Camera Vibration Isolation

    Ask Lasest Price
    Brand Name : Hoan
    Model Number : GR2-6.7A-A
    Certification : ISO9001:2015
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    • Product Details
    • Company Profile

    GR2-6.7A-A Screw-in Shock Absorber for Camera Vibration Isolation

    GR2 Series

    Neutralizing Disturbances Invisibly: The Nonlinear Wisdom of Hoan Microwave's GR Series Isolators


    In a world full of vibrations, protecting sensitive equipment from interference is an exquisite science. The GR series (butterfly-shaped) wire rope isolators from Xi'an Hoan Microwave Co., Ltd., by leveraging the wisdom of nonlinear dynamics, have become the "silent guardians" under the feet of equipment.


    The extraordinary feature of the GR series lies in its inherent nonlinear stiffness and nonlinear damping characteristics. As the amplitude of external excitation (vibration or shock) increases, its stiffness is not constant but shows a gradual "soft-to-hard" trend. This allows it to remain gentle when subjected to minor vibrations, providing good isolation; while when facing high-energy shocks, it quickly "hardens" to effectively limit equipment displacement and prevent collision damage. At the same time, the complex frictional sliding mechanism between the wire rope layers provides strong nonlinear damping related to motion speed. This damping acts significantly when the amplitude is large, rapidly dissipating impact energy; while it has little effect during micro-amplitude vibrations, avoiding adverse interference with high-frequency vibration isolation performance.

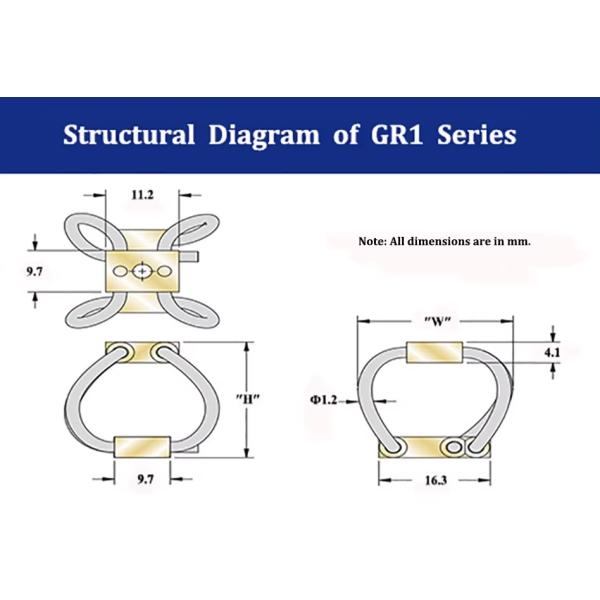

    Dimension Parameter Table

    Model

    Height(mm)

    ±1.5

    Width

    (mm)

    Weight

    (kg)

    Mounting Options

    Thru Hole

    (mm)

    Thread

    (mm)

    C'sink

    (°)

    GR2-12A-A16200.06A,B,C,D,E,S∅3.3M3*0.590
    GR2-9.3A-A19210.06
    GR2-6.7A-A23240.07
    GR2-4.9A-A27270.07

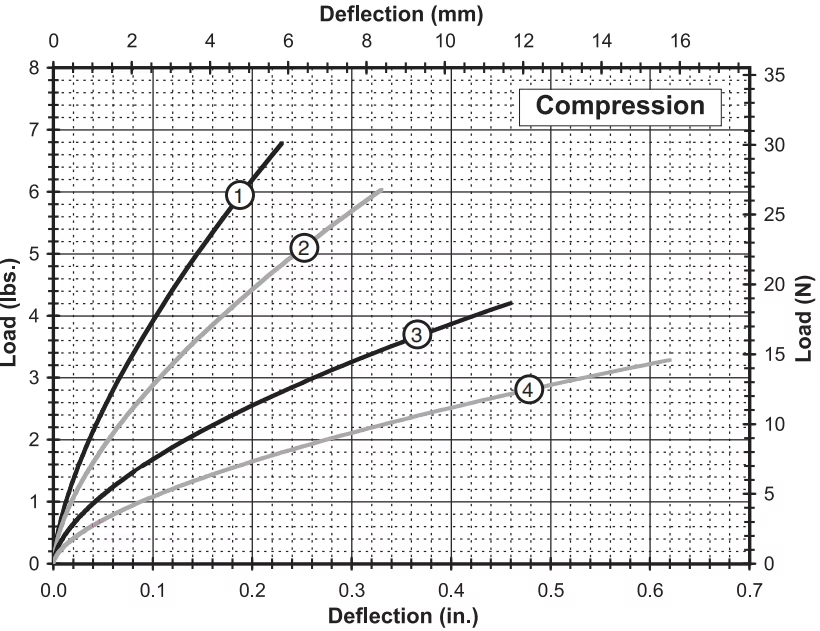

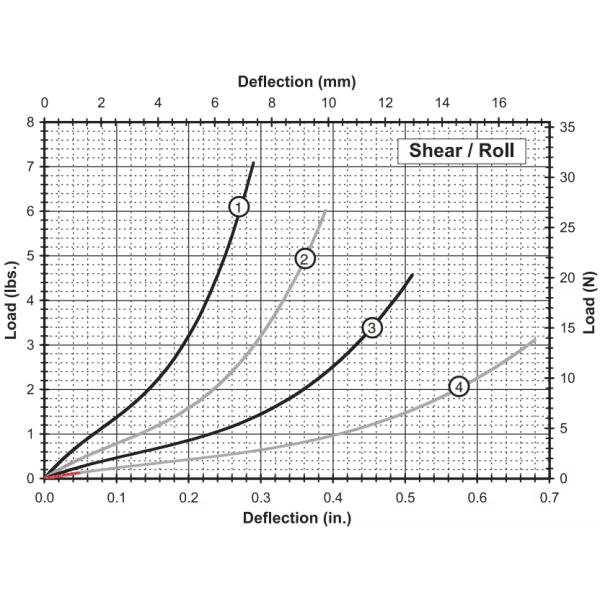

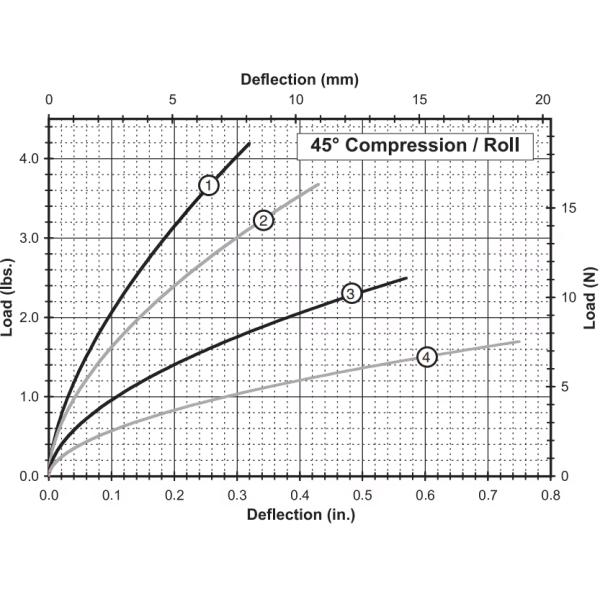

    Static-Load Curve

    No.Model

    Max Static Load

    (mm)

    Max Deflection

    (mm)

    Kv(Vibration)

    (KN/m)

    Ks(Shock)

    (KN/m)

    1GR2-12A-A125.8116.1
    2GR2-9.3A-A9.38.48.84.0
    3GR2-6.7A-A6.711.75.31.9
    4GR2-4.9A-A4.915.73.51.2

    No.Model

    Max Static Load

    (mm)

    Max Deflection

    (mm)

    Kv(Vibration)

    (KN/m)

    Ks(Shock)

    (KN/m)

    1GR2-12A-A5.88.16.12.8
    2GR2-9.3A-A4.910.95.31.9
    3GR2-6.7A-A3.314.53.21.0
    4GR2-4.9A-A2.219.11.90.5

    No.Model

    Max Static Load

    (mm)

    Max Deflection

    (mm)

    Kv(Vibration)

    (KN/m)

    Ks(Shock)

    (KN/m)

    1GR2-12A-A5.67.43.03.0
    2GR2-9.3A-A4.09.91.81.8
    3GR2-6.7A-A2.913.01.11.1
    4GR2-4.9A-A2.017.30.50.5


    Product Applications

    ApplicationsTypical EquipmentProtection FromOperational Advabtages
    ShipboardElectronics,Computers, MachineryExplosive blast,Inherent vibration, StormsLong life, Maintenance-free, Temperature extremes,Corrosion resistance,All axes protection
    Rough Terrain VehiclesInstrumentation, Generators,ElectronicsRough terrain,Poor road conditions, CollisionLong life, Maintenance-free, Temperature extremes, Ozone, Radioactivity, UV Radiation
    Shipping ContainersOptics, Instruments, Missiles, ElectronicsTransit, Handling drop, Loading/UnloadingLong life, Maintenance-free, Exposure to moisture, Repeated use
    AircraftElectronics,ComputersHigh-G maneuvering, Hard landings, Turbulent airTemperature and altitude extremes, Lightweight
    Industrial EquipmentCentrifuge, Dryers, PumpsUnbalanced dynamic loads,Fluid hammer, Inherent vibration, Foundation weaknessLong life, Maintenance-free, Corrosive environments
    Ordnance EquipmentComputer controls, ElectronicsRough terrain, Railroad humping, TransitMaintenance-free, Temperature extremes, Nearby blast
    Medical EquipmentMechanical equipment necessary for patient careVibration from moving parts, Mobile carts-Transport shockMaintenance-free, No out gassing, Can be sterilized
    ChimneysChimneys, Scrubbers, Measuring devicesWind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc.Maintenance-free, Temperature extremes, Corrosive environments


    * Material of Mounting Bars *

    Stainless Steel or Aluminum can be selected


    * Surface Treatment Selection of Aluminum Mounting Bars *

    * White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;


    * Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
