    JGX-1276A-278A Three-Dimensional Wire Rope Vibration Isolator for Horizontal Longitudinal and Rotational Vibration Attenuation

    Ask Lasest Price
    Brand Name : Hoan
    Model Number : JGX-1276A-278A
    Certification : ISO9001:2015 Certificate
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Delivery Time : 4,7
    • Product Details
    • Company Profile

    JGX-1276A-278A Three-Dimensional Wire Rope Vibration Isolator for Horizontal Longitudinal and Rotational Vibration Attenuation

    JGX-1276 Series

    Product Description

    Xi'an Hoan Microwave Co., Ltd. JGX-1276 series wire rope vibration isolators are specifically designed for the vibration control needs of high-precision equipment. The product is formed by special stainless steel wire ropes woven by special technology (the specific weaving structure and material composition are the company's patented technologies), forming three-dimensional nonlinear stiffness and damping characteristics, which can simultaneously attenuate the vibration energy in the horizontal, longitudinal and rotational directions. Its core advantage lies in its broadband vibration isolation capability - it has significant isolation efficiency for medium and high frequency vibrations above 20Hz, and at the same time has excellent buffering performance for low-frequency impact energy (such as equipment start-stop and transportation bumps).


    The product has a compact structure. The all-metal material ensures stable performance in the temperature range of -55℃ to +150℃, and there is no aging risk. The base and installation interface are optimally designed to support flexible assembly on various electronic cabinets, instrument brackets and equipment bases. After strict environmental adaptability verification (specific test data are internal materials), it can still maintain long-term reliability in humid heat, salt spray and mold environments, and is suitable for vehicle-mounted, shipborne and fixed equipment platforms.


    Typical applications: vibration reduction of radar antennas, support of precision optical platforms, shock protection of medical imaging equipment, and protection of high-end industrial instruments.


    Specification

    No.

    Model

    Max Static Load

    (kg)

    Max Deflection

    (mm)

    Kv(Vibration)

    (KN/m)

    Ks(Shock)

    (KN/m)

    1JGX-1276A-278A27832.0716352
    2JGX-1276A-233A23338.1531249
    3JGX-1276A-220A22043.2461208
    4JGX-1276A-176A17648.8343147
    5JGX-1276A-149A14959.9256103
    6JGX-1276A-130A13074.719672
    7JGX-1276A-115A11585.915454
    8JGX-1276A-92B92102.611137

    No.

    Model

    Max Static Load

    (kg)

    Max Deflection

    (mm)

    Kv(Vibration)

    (KN/m)

    Ks(Shock)

    (KN/m)

    1JGX-1276A-278A197.444.7405177
    2JGX-1276A-233A165.752.8298126
    3JGX-1276A-220A156.661.0263105
    4JGX-1276A-176A124.868.619474
    5JGX-1276A-149A106.684.814451
    6JGX-1276A-130A93.1105.711037
    7JGX-1276A-115A81.7121.98828
    8JGX-1276A-92B63.6144.86219

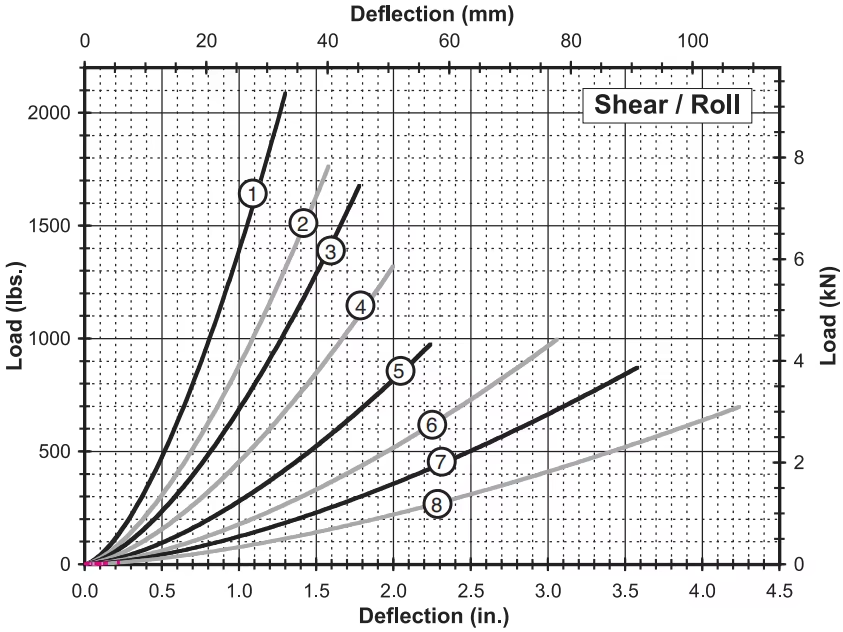

    No.

    Model

    Max Static Load

    (kg)

    Max Deflection

    (mm)

    Kv(Vibration)

    (KN/m)

    Ks(Shock)

    (KN/m)

    1JGX-1276A-278A152.033.0221221
    2JGX-1276A-233A124.840.1156156
    3JGX-1276A-220A115.745.2130130
    4JGX-1276A-176A93.150.89191
    5JGX-1276A-149A61.356.96060
    6JGX-1276A-130A45.477.74646
    7JGX-1276A-115A34.190.93333
    8JGX-1276A-92B22.7107.72323


    FAQ

    1.Are you a manufacturer or a trading company?

    A: We are a manufacturer, not a trading company. We produce our products in our own facilities, ensuring full control over the quality and production process. This allows us to offer competitive pricing and
    customized solutions directly to our clients.

    2. Can you customize products for us?
    Yes, we have the capability to customize our products to meet your specific needs. Please contact us with your requirements, and our team will work with you to create a tailored solution that fits your preferences.

    3.What is the lead time?
    Sample will usually take 2 to 5 days.For the mass production,it will estimated take 7 to 20 day, Faster delivery when our factory has stock.

    4. Can I get some samples before place order and how long for a sample?
    Yes, sample order is accepted

    5. How is your shipping?
    1)worldwide shipping service available
    2)please contact before order as shipping cost varies time to time.

    6. Do you offer discounts for bulk orders?
    Yes, we offer discounts for bulk orders. The discount percentage may vary depending on the order quantity.
