JGX-2228 Series

In modern industry, steel wire rope vibration isolators play a crucial role. They are mainly composed of high - strength steel wire ropes, and their unique structures endow them with excellent vibration isolation performance. During operation, through the mutual friction and elastic deformation of the steel wire ropes, vibration energy is converted into heat energy and dissipated.This type of vibration isolator can operate stably in harsh environments, whether it is a high - impact or high - humidity setting. It can significantly reduce the vibration and noise of equipment, improve the reliability and service life of equipment,and is an ideal choice to ensure the normal operation of various precision equipment and mechanical devices.

Product parameters

	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KNm)	Ks(shock) (KNm)
1	JGX-2228D-1250B	1250	50.8	2362	1010
2	JGX-2228D-960B	960	67.3	1513	585
3	JGX-2228D-860B	860	74.9	1270	469
4	JGX-2228D-665B	665	102.9	800	263
5	JGX-2228D-550B	550	125.7	585	180
6	JGX-2228D-380B	380	125.7	377	138

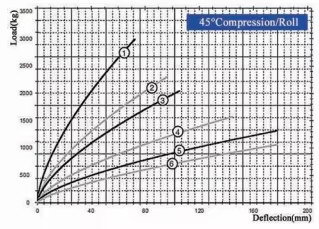

	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KNm)	Ks(shock) (KNm)
1	JGX-2228D-1250B	889.8	72.4	1348	503
2	JGX-2228D-960B	680.6	96.5	860	289
3	JGX-2228D-860B	613.3	105.4	718	235
4	JGX-2228D-665B	454.1	144.8	448	131
5	JGX-2228D-550B	331.6	177.8	327	89
6	JGX-2228D-380B	215.3	177.8	212	70

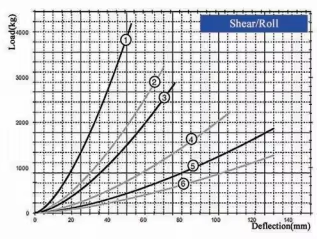

	Model	Max Static Load (kg)	Max Deflection (mm)	Kv(Vibration) (KNm)	Ks(shock)
1	JGX-2228D-1250B	626.5	53.3	618	618
2	JGX-2228D-960B	361.5	71.1	356	356
3	JGX-2228D-860B	294.9	77.5	291	291
4	JGX-2228D-665B	165.3	108.0	163	163
5	JGX-2228D-550B	113.2	132.1	112	112
6	JGX-2228D-380B	77.6	132.1	77	77

* The material of the wire rope splint *
Stainless Steel or Aluminum can be selected

* Surface treatment options for aluminum alloy plywood *

· White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
· Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
