The JGX-1276D-176B wire rope shock isolator is another kind type isolators which are included in the family JGX-1276 series. The stainless steel cables and retaining bars of the JGX-1276D-176B provides amazing vibration isolation any time in use.

JGX-1276D-176B is the new designed 6 loops 12.7mm diameter model with max static load of 176kg, especially used in any instruments or systems for noise attenuation. With stainless steel material, this model has perfect performance of water-proof, anticorrosion as well as durability.

The JGX-1276D-176B model is are now widely used in the field of shipping-aviation-space flight and vehicle etc. Also, the JGX-1276D-176B can be used in the required working conditions especially for huge equipments or the related systems.

The wire rope shock isolators is now widely used in the field of vehicles, launcher, highway transportation, marine, shipbuilding, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

• Model Number Code Ordering of JGX-1276D-176B:
• Structural Diagram of JGX-1276D-176B:
• Dimension of JGX-1276D-176B:

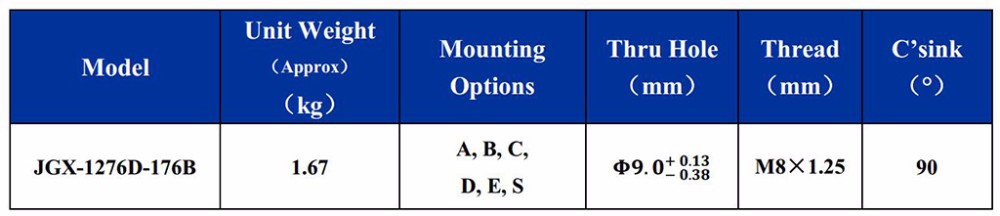

• Mounting Options of JGX-1276D-176B:
• Compression of JGX-1276D-176B:
• 45° Compression of JGX-1276D-176B:

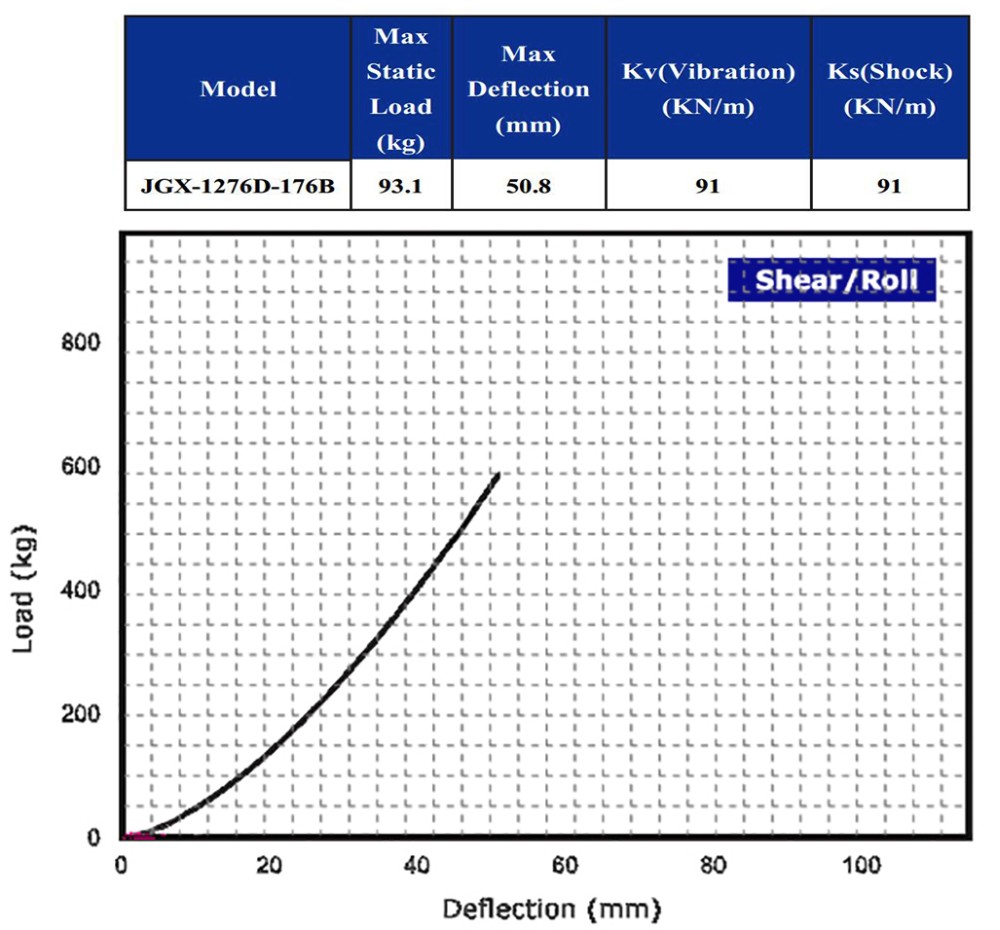

• Shear/Roll of JGX-1276D-176B:

* Material of Mounting Bars *
Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

• White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
• Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

• No creep or ageing.
• High internal damping.
• Very wide temperature range.
• Wide variety of possible fittings.
• Rapid and economical prototyping.
• Extremely rugged construction and long lifespan.
• Excellent combined shock and vibration isolation.
• Not affected by chemical agents, seawater, ozone, UV rays,...

* Applications of Wire Rope Shock Isolators *

* Applications Show *
