Wire shock absorbers are comprised of stainless steel stranded cable threaded through aluminum retaining bars that are mounted for effective shock and vibration isolation.

With their corrosion resistant, all-metal construction, Xi’an Hoan’s shock absorbers are environmentally stable, high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.

JGX-0160D-3.6A is the new designed 10 loops 1.6mm diameter model with max static load of 3.6kg, especially used in the precise instruments or systerms for noise attenuation.

The wire ire shock absorbers are now widely used in the field of military vehicles, armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, generators, cameras or any other needed working conditions.

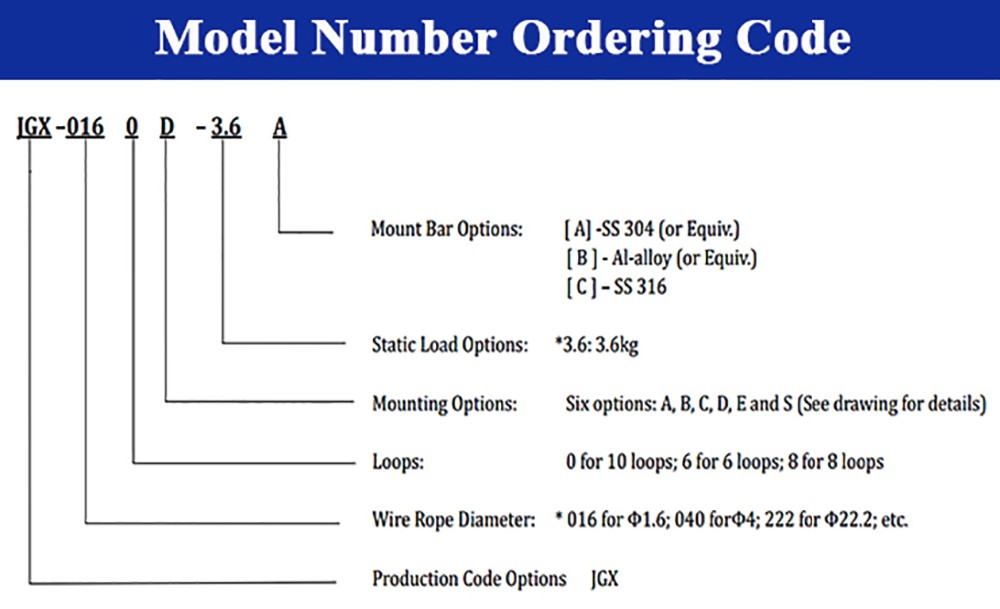

• Model Number Code Ordering of JGX-0160D-3.6A:

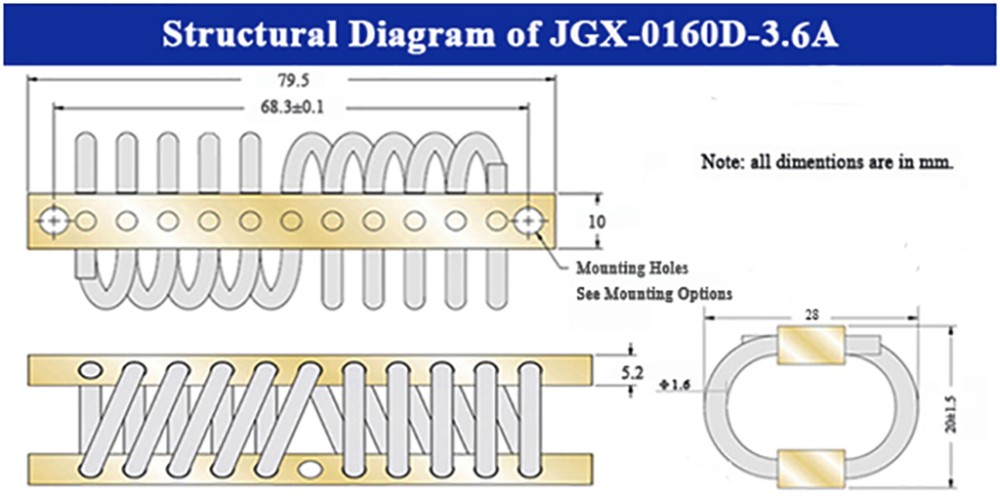

• Structural Diagram of JGX-0160D-3.6A:
• Dimension of JGX-0160D-3.6A:

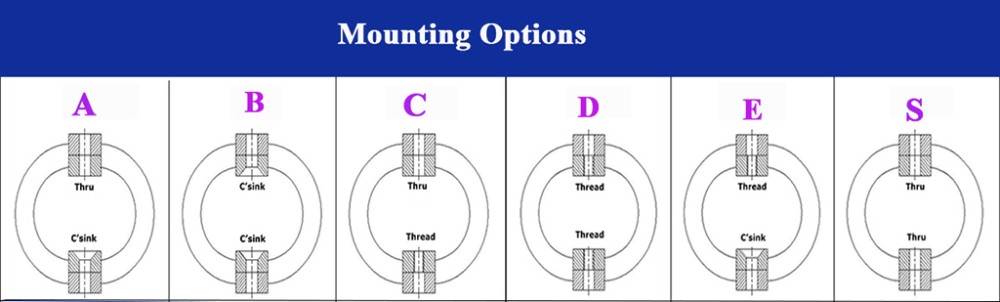

• Mounting Options of JGX-0160D-3.6A:
• Compression of JGX-0160D-3.6A:
• 45° Compression of JGX-0160D-3.6A:
• Shear/Roll of JGX-0160D-3.6A:

* Material of Mounting Bars *
Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

• White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
• Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

• No creep or ageing.
• High internal damping.
• Very wide temperature range.
• Wide variety of possible fittings.
• Rapid and economical prototyping.
• Extremely rugged construction and long lifespan.
• Excellent combined shock and vibration isolation.
• Not affected by chemical agents, seawater, ozone, UV rays,...
