    Universal Wire Rope Isolator Anti-Vibration Mount ISO9001

    Ask Lasest Price
    Brand Name : Hoan
    Model Number : JGX-0956D-75A
    • Product Details
    • Company Profile

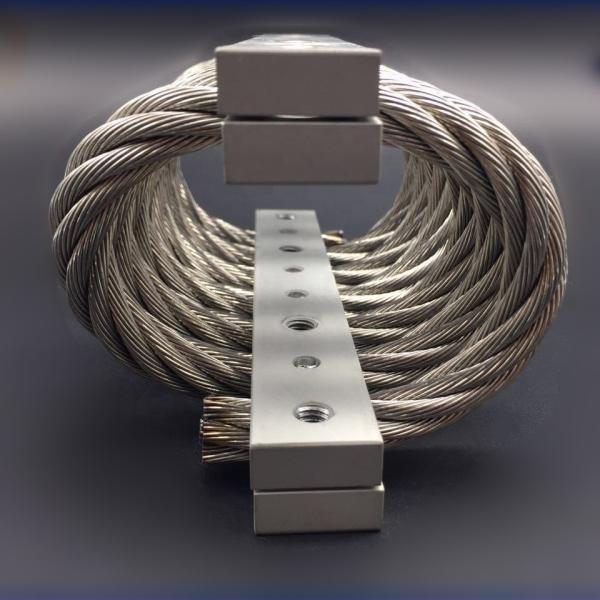

    Universal Wire Rope Isolator Anti-Vibration Mount ISO9001

    Mechanical Parts Shock Vibration Insulation Land Transportation Used JGX-0956D-75A Stainless Steel Wire Rope Isolator

    Product Description

    The JGX-0956D-75A wire rope isolator is another kind type isolators which are included in the family JGX-0956 series. The stainless steel cables and retaining bars of the JGX-0956D-75A provides amazing vibration isolation any time in use.

    JGX-0956D-75A is the new designed 6 loops 9.5mm diameter model with max static load of 75kg, especially used in any instruments or systems for noise attenuation. With stainless steel material, this kind wire rope isolator have perfect performance of water-proof, anticorrosion as well as durability.

    The JGX-0956D-75A wire rope isolators are now widely used in the field of vehicles, armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

    Technical Parameter
    • Model Number Code Ordering of JGX-0956D-75A:Universal Wire Rope Isolator Anti-Vibration Mount ISO9001

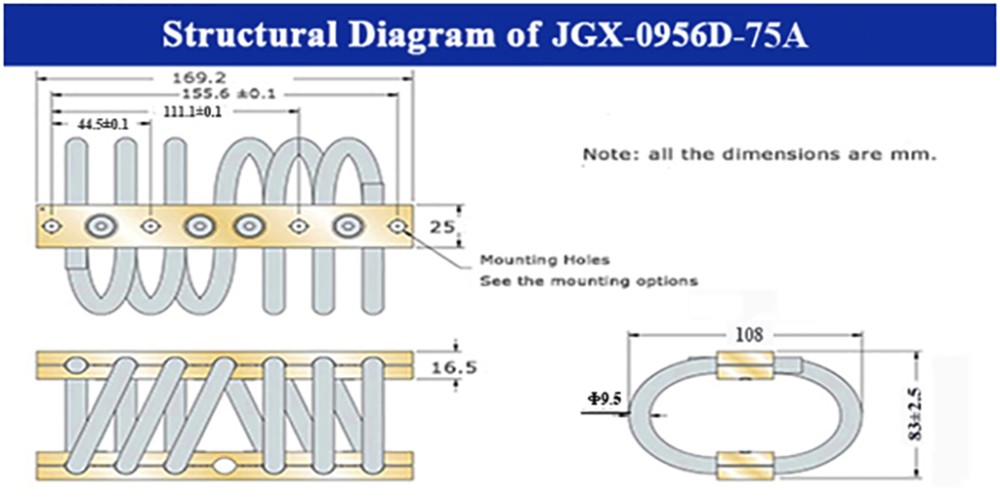

    • Structural Diagram of JGX-0956D-75A:Universal Wire Rope Isolator Anti-Vibration Mount ISO9001
    • Dimension of JGX-0956D-75A:Universal Wire Rope Isolator Anti-Vibration Mount ISO9001
    • Mounting Options of JGX-0956D-75A:Universal Wire Rope Isolator Anti-Vibration Mount ISO9001
    • Compression of JGX-0956D-75A:Universal Wire Rope Isolator Anti-Vibration Mount ISO9001

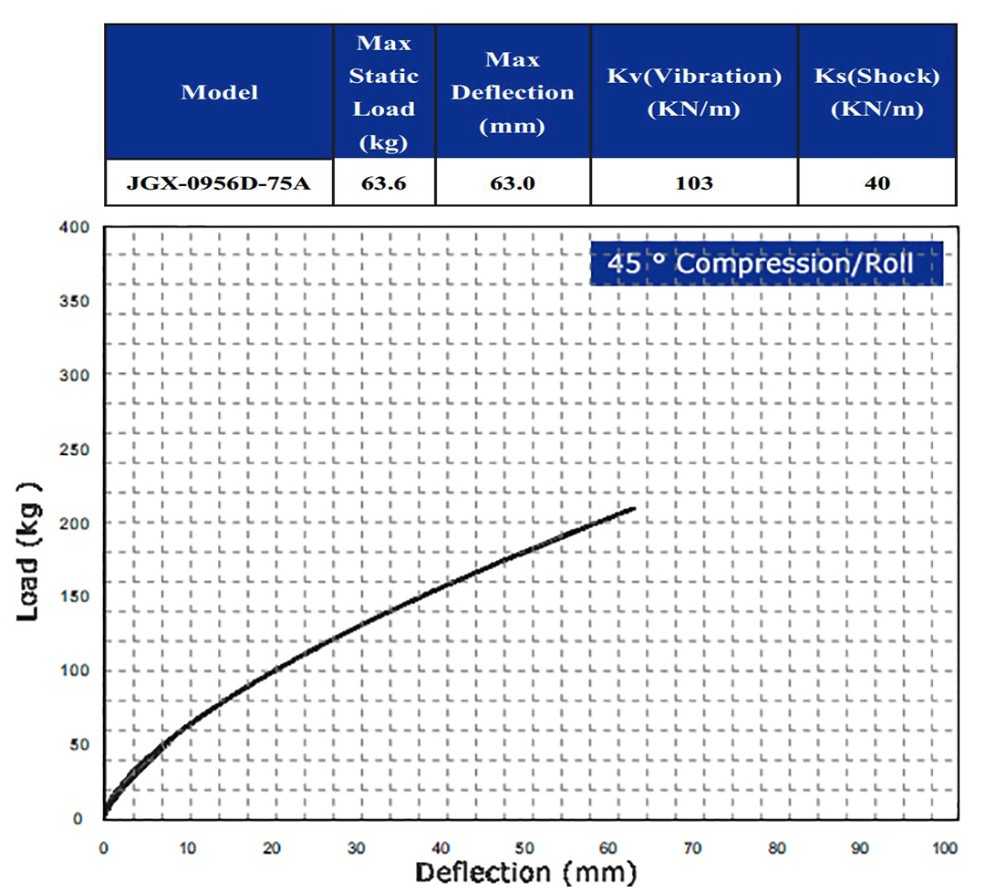

    • 45° Compression of JGX-0956D-75A:Universal Wire Rope Isolator Anti-Vibration Mount ISO9001
    • Shear/Roll of JGX-0956D-75A:Universal Wire Rope Isolator Anti-Vibration Mount ISO9001
    Mounting Bars

    * Material of Mounting Bars *
    Stainless Steel or Aluminum can be selected

    * Surface Treatment Selection of Aluminum Mounting Bars *

    • White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
    • Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
    Applications

    * Applications of Wire Rope Isolators *


    Applications

    Typical Equipment

    Protection From

    Operational Advantages

    Shipboard

    Electronics, Computers,
    Machinery

    Explosive blast,
    Inherent vibration, Storms

    Long life, Maintenance-free,
    Temperature extremes,
    Corrosion resistance,
    All axes protection

    Rough Terrain Vehicles

    Instrumentation, Generators,
    Electronics

    Rough terrain,
    Poor road conditions,
    Collision

    Long life, Maintenance-free,
    Temperature extremes, Ozone,
    Radioactivity, UV Radiation

    Aircraft

    Electronics, Computers

    High-G maneuvering,
    Hard landings, Turbulent air

    Temperature and altitude extremes, Lightweight

    Shipping Containers

    Optics, Instruments, Missiles, Electronics

    Transit, Handling drop,

    Loading/Unloading

    Long life, Maintenance-free,

    Exposure to moisture, Repeated use

    Industrial Equipment

    Centrifuge, Dryers, Pumps

    Unbalanced dynamic loads,

    Fluid hammer, Inherent vibration, Foundation weakness

    Long life, Maintenance-free,

    Corrosive environments

    Ordnance Equipment

    Missile launchers, Tank

    artillery, Computer controls, Electronics

    Rough terrain, Railroad humping, Transit

    Maintenance-free, Temperature extremes, Nearby blast

    Medical Equipment

    Mechanical equipment

    necessary for patient care

    Vibration from moving parts, Mobile carts-Transport shock

    Maintenance-free, No out gassing, Can be sterilized

    Chimneys

    Chimneys, Scrubbers,

    Measuring devices

    Wind causing resonant

    frequencies, Stack gas causing turbulence near scrubber, etc.

    Maintenance-free, Temperature extremes, Corrosive environments


    * Applications Show *

    Universal Wire Rope Isolator Anti-Vibration Mount ISO9001


    Universal Wire Rope Isolator Anti-Vibration Mount ISO9001


    Universal Wire Rope Isolator Anti-Vibration Mount ISO9001


    Universal Wire Rope Isolator Anti-Vibration Mount ISO9001


    Universal Wire Rope Isolator Anti-Vibration Mount ISO9001


    Universal Wire Rope Isolator Anti-Vibration Mount ISO9001

    Company Information

    Xi’an Hoan Mirowave Co. Ltd., the professional manufacture of vibration isolators and mounts, provides top quality energy absorption and vibration isolation solutions to a variety filed of military, defense, commercial and heavy industry.

    Our products cover a wide range, which are not only vibration isolators, vibration mounts, friction dampers and also shock absorbers as well as LC filters. Established in 2005, with the fast development of decades, we have been grew with more than 500 employees including more than 100 experts.

    Now, we are the best seller for more than 31 provinces in China and almost 25 oversea countries for areas of motor, fans, punch machine, elevator, compressor, chemical equipment, subway train, bridge, mechanical equipment, large scaled construction, studios, theaters, vehicles, vessels, and machines.

    Contact us today to see how our products can benefit your specific equipment application needs or alternatively you may find one of our many representatives to help you meet your product requirements!
