Wire rope isolators are comprised of stainless steel stranded cable threaded through aluminum alloy retaining bars that are mounted for effective shock and vibration isolation.

With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire rope isolators are environmentally stable, high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.

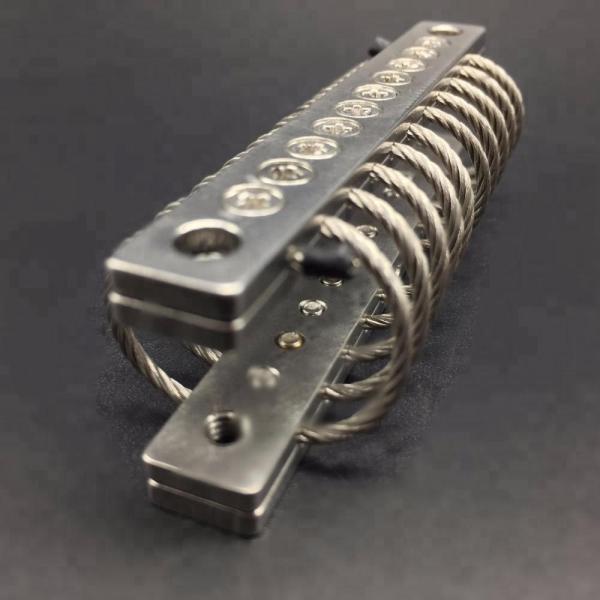

The JGX-0240 series wire rope isolator is another new model isolators with 10 loops 2.4mm diameter wire rope of the JGX series. Just like all the other isolators, this new type has all the characteristics of the most isolators. And this new series is much more better than before, which are widely used in the field of highway transportation, maritime transport as well as aerial photography or any other needed working conditions.

The maximum static load of the JGX-0240 series wire rope isolator is from 3.6kg to 8.6kg, which can be used in any exquisite equipments or systems which require for noise attenuation.

The JGX-0240 series wire rope isolator is smaller than the traditional wire isolators, which can provide better cost-effective, simultaneous shock and vibration attenuation than any other isolators in the market.

• Model Number Code Ordering of JGX-0240 Series:
• Structural Diagram of JGX-0240 Series:
• Dimension of JGX-0240 Series:
• Mounting Options of JGX-0240 Series:
• Compression of JGX-0240 Series:
• 45° Compression of JGX-0240 Series:
• Shear/Roll of JGX-0240 Series:

* Applications of Wire Rope Isolators *

* Applications Show *

Xi’an Hoan Mirowave Co. Ltd., the professional manufacture of vibration isolators and mounts, provides top quality energy absorption and vibration isolation solutions to a variety filed of military, defense, commercial and heavy industry.

Our products cover a wide range, which are not only vibration isolators, vibration mounts, friction dampers and also shock absorbers as well as LC filters. Established in 2005, with the fast development of decades, we have been grew with more than 500 employees including more than 100 experts.

Now, we are the best seller for more than 31 provinces in China and almost 25 oversea countries for areas of motor, fans, punch machine, elevator, compressor, chemical equipment, subway train, bridge, mechanical equipment, large scaled construction, studios, theaters, vehicles, vessels, and machines.

Contact us today to see how our products can benefit your specific equipment application needs or alternatively you may find one of our many representatives to help you meet your product requirements!
